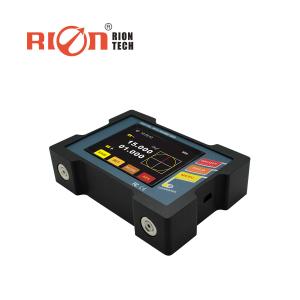

RION 0.003 Deg High Accuracy Digital Inclinometer Piping Installation Angle Meter

Name: RION 0003 Deg High Accuracy Digital Inclinometer Piping Installation Angle Meter
Brand: RION
Price: 438.00 USD

China RION 0.003 Deg High Accuracy Digital Inclinometer Piping Installation Angle Meter factory

Place of Origin : Guangdong, China

Brand Name : RION

Model Number : DMI820-30

Packaging Details : 1pcs inclinometer / inner wooden box with sponge , 50pcs packed in strong & safe carton

Price : $438.00/Pieces

Certification : CE, RHOS

MOQ : 1

Payment Terms : T/T, Paypal

Supply Ability : 1000/month

Delivery Time : 7 days for samples

inclinometer Best accuracy : <0.003deg

Repeatability : 0.003deg

Angle resolution : 0.001deg

Measuring rang : +/-15deg or +/-30deg optional

Alarm : User can set the alarm value by himself

Data store : Yes

Absolute/Relative measurement : yes

Working Temperature : -10 ~+70C

°/mm/m Dual units switch function : Yes

Protection : IP54

Contact Now

Industry Grade High Accuracy Touch Screen Digital Inclinometer

Application :

Building construction
Automobile four wheel testing
Road slope
Machinery installation
Piping installation
Industrial platform
Turntable testing
Pan unit angle detection
Production jig
Medical instruments

Technical Data

Angle Measuring range	DMI820:±15 ° ;	DMI820:±30 ° ;	°
MM measuring range	267	577	mm
Meausring axis	dual axis	dual axis
The highest meausring accuracy	<0.005 (Full measuring range)	<0.01 (Full measuring range)	°
Angle Measuring resolution	0.001	0.001	°
MM measuring accuracy	0.1	0.2	mm
Three measurement mode selectable	radian, angle, mm measuring can be selected
MM measuring res	0.02		mm
LCD	64 true colors night vision display screen
LCD visible area size	*L57.6W43.2**		mm
Working temperature	-10°~ +70℃		°/℃
Working humidity	85		%RH
Power supply	3.7VCharging Lithium battery		V
Ideal charging time	3~4		h
Battery sustainable charging times	11		h
Equipped with PC software	VC software
Data output signal	USB1.1
Connect plug in	Standard 5Pin USB connector
Shock resistance	10g@11ms,3Times/Axis(half sinusoid)		g
Shock impact	10grms,10~100Hz		g
Weight	300		g
Waterproof grade	IP54
Material	Metal
Size	L107W75H27.1mm		mm

Order information :

Item No.	Desc.
DMI820-15	Standard dual-axis digital display inclinometer ±15°
DMI820-30	Standard dual-axis digital display inclinometer ±30°

E.g:DMI820-15 is standard Dual-axis digital display inclinometer with measuring range ±15°
