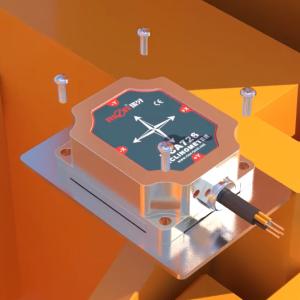

Construction Vehicle High Accuracy Inclinometer 9-36v 0.001deg Resolution

Name: Construction Vehicle High Accuracy Inclinometer 936v 0001deg Resolution
Brand: Rion
Price: 273.00 USD

Brand Name : Rion

Model Number : HCA716S-30

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1

Price : $273.00/Pieces 1-9 Pieces

Payment Terms : T/T, PayPal

Supply Ability : 5000/month

Delivery Time : 7

Packaging Details : box

Usage : inclinometer

Output : RS232 RS485 TTL

Dimension : 54 x 44 x 18mm

Power supply : 9~36v

accuracy : 0.01deg

resolution : 0.001deg

water proof : IP67

Contact Now

incline meter for construction vehicle high precise sensor incline measure

▶ FEATURES

★ Single / dual axis inclination measurement

★ Range ± 1 ~ ± 90 ° optional

★ Accuracy: Refer to data table

★ DC 9 ~ 36V wide voltage input

★ Wide temperature operation -40 ~ + 85 ℃

★ Resolution 0.001 °

★ IP67 protection grade

★ High vibration resistance> 100g

★ Direct lead interface

Technical Data

HCA716/HCA726	CONDITION	PARAMETERS				UNIT
Measure range		±15	±45	±60	±180	°
Measure axis		X,Y	X,Y	X,Y	Vertical X	axis
Resolution		0.001	0.001	0.003	0.005	°
Measure accuracy	@25℃	±0.008	±0.01	±0.01	±0.01	°
Zero Temp.coefficient	-40～85℃	±0.0005	±0.0005	±0.0005	±0.0005	°/℃
Sensitivity temp-coeffi	-40～85℃	≤0.01	≤0.01	≤0.01	≤0.01	%/℃
Power on time		0.5	0.5	0.5	0.5	S
Response frequency	20HZ
Interface	TTL / RS232 / RS485 optional
Communication protocol	RION 68 protocol / MODBUS RTU protocol optional
EMC	According to EN61000 and GBT17626
MTBF	≥50000 hours/times
Insulation Resistance	≥100MΩ
Shockproof	100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration	10grms,10～1000Hz
Protection grade	IP67
Cables	Standard configuration: 1m length, wear-resistant,oil-proof, wide temperature, shielded cable4*0.2mm2
Weight	≤150g (including 1 meter cable)

▶ ELECTRONIC CHARACTERI

PARAMETERS	CONDITIONS	MIN	STANDARD	MAX	UNIT
Power supply	Standard	9	12,24	36	V
Working current	No load		40		mA
Working temperature		-40		+85	℃
Store temperature		-40		+85	℃

Construction Vehicle High Accuracy Inclinometer 9-36v 0.001deg Resolution

▶ MECHANICAL PARAMETERS

○ Connector: 1m Direct Leading Cable ( Can Be Customized)

○ Protection level: IP67

○ Shell material: aluminum alloy shield oxidation

○ Installation: Four M4 screws

DIMENSION

Construction Vehicle High Accuracy Inclinometer 9-36v 0.001deg Resolution
