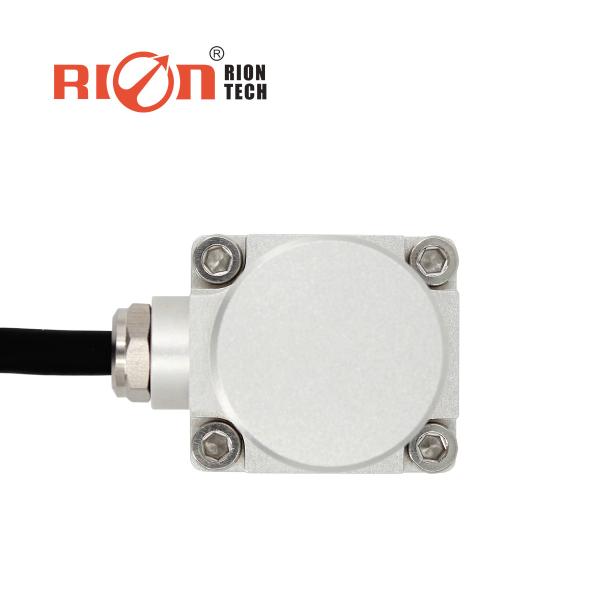

AKM390 Bridge Vibration Detector , High Output Rate Vibration Monitor

  • 1
  • 2
  • 3

Brand Name : RION

Model Number : AKM390-20

Certification : CE, ISO

Place of Origin : Guangdong, China

MOQ : 1

Price : $235.00/Pieces

Payment Terms : T/T, PAYPAL

Supply Ability : 3000 PCS/MONTH

Delivery Time : 7 days for samples

Packaging Details : 1pcs vibration sensor in each inner box , 50pcs/ctn

Name : impact detecting sensor

output : 0~5V

power supply : DC 9~36V

Deviation calibration : <1mg

Noise density : 21μg/√Hz

Resonant frequency : 2.4kHz

Bandwidth (3DB) : 500Hz

protection : IP67

Contact Now

AKM390 Bridge Vibration Detector , High Output Rate Vibration Monitor

AKM390 tri-axial accelerometer is a widely used acceleration sensor products independently developed and produced by RION Technology, which can be applied to vibration testing, impact testing and other fields. The product is analog voltage output and can be set with different address codes. Multiple sensors can be connected in series for a long distance, which is convenient for multi-point measurement and data analysis. The AKM390 is a monocrystalline silicon capacitive sensor. It consists of a silicon chip processed by micromachining, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, solid structure and stable output after calibration. The new electronic configuration provides solid state power for reset and full protection against over-current. The accelerometers have the characteristics of solid structure, low power consumption and excellent deviation stability to ensure the reliability of product output.

▶ PRODUCT FEATURES

  • Three axes (X, Y, Z)
  • Output voltage: 0 ~ 5V
  • Power supply voltage: 9~36V
  • Shock resistance: 2000G
  • Operating temperature: -40℃~ +85℃
  • Storage temperature: -40℃ ~ +85℃
  • Excellent deviation stability, good environmental performance (shock, vibration and temperature)

▶ PRODUCT APPLICATION

  • Bridge
  • Automobile
  • Roller
  • Wind power
  • Medical equipment
  • Large machinery and engine
  • Low frequency vibration and automatic monitoring
  • Crash recording, fatigue monitoring and prediction
  • Traffic system monitoring, subgrade analysis and high-speed railway fault detection

Specification

AKM390 Parameter Unit
Measure range ±2 ±4 ±8 ±10 ±20 ±40 g
Deviation calibration <1 <1 <1 <1 <1 <1 mg
Measure axis X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z axis
Power on/off repeatability <2 <2 <2 <2 <2 <2 mg(max)
Sensitivity (± 10%) 1250 625 312.5 250 125 62.5 mv/g
Temp. coefficient of deviation 0.01 0.01 0.01 0.05 0.05 0.05 %/℃
Resolution/Threshold (@ 1Hz) < 1 < 1 < 1 < 1 < 1 < 1 mg(max)
Nonlinearity <0.5 <0.5 <0.8 <1 <1 <1 % FS(max)
Response frequency 500 500 500 500 500 500 Hz
Bandwidth (3DB) 1000 1000 1000 1000 1000 1000 Hz
Cross-axis sensitivity 1 1 1 2 2 2 %
Lateral Vibration Sensitivity Ratio 1 1 2 5 5 5 %
Resonant frequency 2.4 2.4 2.4 5.5 5.5 5.5 kHz
Noise density 21 21 21 86.6 86.6 86.6 μg/√Hz
0 G Output 2.5V <0.01 <0.01 <0.01 <0.008 <0.008 <0.008 mV
Output voltage 0~5V
Input (VDD _ VSS) 9-36 VDC
Operating current consumption <60mA @ 12 VDC
Protection IP67
Material aerospace aluminum
Weight Product net weight: ≤116g, magnetic base: ≤50g
Size

Product size: L36 × W32 × H24mm

Size of magnetic adsorption base plate: L36 × W32 × H8.1mm

Size

AKM390 Bridge Vibration Detector , High Output Rate Vibration Monitor

ELECTRICAL CONNECTION

THREAD COLOR FUNCTION RED BLACK WHITE GREEN GRAY

DC9～36V

Positive pole of power supply

 GND X-axis voltage signal Y-axis voltage signal

Z-axis voltage signal

AKM390 Bridge Vibration Detector , High Output Rate Vibration Monitor

PRODUCT MEASUREMENT DIRECTION

AKM390 Bridge Vibration Detector , High Output Rate Vibration Monitor
