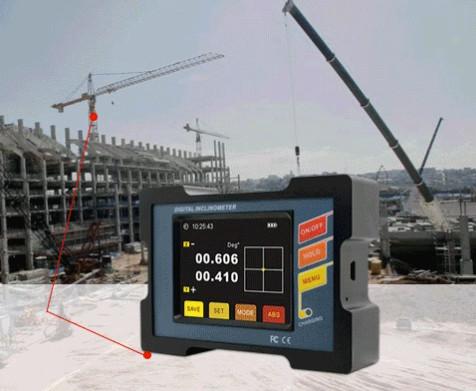

DMI820 Dual Axis Digital Inclinometer High Accuracy Measurement 577mm/m
▶ FEATURES
★ Best accuracy:<0.005°
★ Repeatability:0.003°
★ Angle resolution:0.001°
★ Maximum measure range:±30°
★ User can set the alarm value by himself
★ Data store function
★ Absolute/Relative measurement can switch
★ Both sides and bottom can measure
★ Double benchmark strong magnet installation
★ Working Temperature : -10°～ +70℃
★ Auto-angle interleaved compensation function
★ Auto temperature drift compensation
★ User can calibrate ZERO by himself
★ Built-in rechargable industry batteries
★ Night vision fours colors screen
★ IP54 protection class
★ °/mm/m Dual units switch function
★ Filter frequency optional
★ Three kinds of measurement mode selectable (radian, angle, mm)
▶ APPLICATION
★ Building construction
★ Automobile four-wheel testing
★ Road slope
★ Machinery installation
★ Piping installation
★ Industrial platform
▶ TECHNICAL DAT
| PARAMETER | DMI810 | DMI820 | UNIT |
| Angle Measure range | ±15 ° | ±30 ° | ±15 ° | ±30 ° | ° |
| MM measure range | 267 | 577 | 267 | 577 | mm/m |
| Meausre axis | Single axis | Single axis | Single axis | Single axis | |
| Highest measurement accuracy (full range) | <0.005 | <0.01 | <0.005 | <0.01 | °(RMS) |
| Angle Measure resolution | 0.001 | 0.001 | 0.001 | 0.001 | ° |
| Repeatability | 0.003 | 0.003 | 0.003 | 0.003 | ° |
| MM measure accuracy | 0.1 | 0.2 | 0.1 | 0.2 | mm/m |
| Three measurement mode selectable | ①Angle ②degree, minute, second ③mm/m three modes can be set | / |
| MM measure res | 0.02 | mm/m |
| LCD | 64 true colors night vision display screen | / |
| LCD visible area size | L57.6*W43.2 | mm |
| Working temperature | -10°~ +70℃ | ℃ |
| Working humidity | 85 | %RH |
| Power supply | 3.7V Charging Lithium battery | V |
| Ideal charging time | 5 | h |
| Battery sustainable charging times | 11 | h |
| Equipped with PC software | VC software | / |
| Data output signal | USB1.1 (Virtual Serial Device) | / |
| Connect plug in | Standard USB connector, rechargeable | / |
| Shock resistance | 10g@11ms,3 Axial Direction (Half Sinusoid) | g |
| Shock impact | 10grms,10~100Hz | g |
| Waterproof grade | IP54 | / |
| Material | Aluminum alloy Anodizing | / |
| Size | L107*W75*H27.1 | mm |
| Weight | 300 | g |
★ Turntable testing ★ Pan unit angle detection ★ Production jig
PRODUCT DIMENSION
