TL720D CANbus Gyro Sensor For AGM Wheel Position Control Vibration Testing

Name: TL720D CANbus Gyro Sensor For AGM Wheel Position Control Vibration Testing
Brand: Rion
Price: 60.00 USD

China TL720D CANbus Gyro Sensor For AGM Wheel Position Control Vibration Testing factory

Brand Name : Rion

Model Number : TL720D-CAN

Certification : CE, ISO

Place of Origin : Guangdong, China

MOQ : 1

Price : $60.00/Pieces >=1 Pieces

Payment Terms : T/T, Paypal

Supply Ability : 3000 Piece/Pieces per Month

Delivery Time : 7 days for samples

Packaging Details : 1pcs/box with sponge inside, 100pcs/ctn

Usage : agricultural vehicle auto driving

Bandwidth : >100Hz

Resolution : 0.01°

Nonlinear : 0.1% of FS

Gyro Range : 250°/s

Accelerometer range : ±4g

Connector : RS232/RS485 , CAN2.0 optional

Power supply : 9~36v

Contact Now

TL720D Low cost CANbus Gyro Imu Sensor for AGM wheel position control Vibration Testing

▶ KEY FEATURES

★ Azimuth angle output

★ Strong vibration resistance

★ Light weight

★ Long life,strong stability

★ Cost-effective

★ All solid state

★ Compact & light design

★ CAN2.0A/CAN2.0B output optional

★ DC9~36V power supply

▶ APPLICATION

★ Automated Agricultural Machinery

★ Precision Agriculture

★ Forklift Truck

★ Cultivator

★ AGV

▶ SPECIFICATIONS

TL720D-C2/C3		PARAMETERS

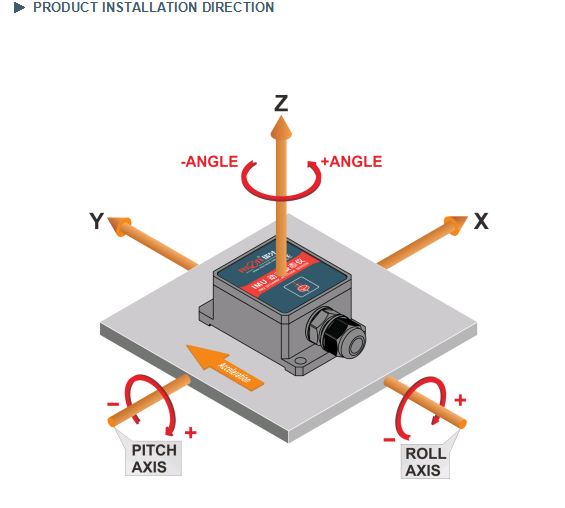

Heading measure axis		Z axis heading angle (±180)°
Bandwidth		>100Hz
Resolution		0.01°
Heading accuracy		<0.1°/m
Position accuracy		<2mm/m (According to the angle conversion)
Nonlinear		0.1% of FS
Pitch measurement range		±90°
Pitch measurement accuracy		0.25°(1σ)
Roll measurement range		±180°
Roll measurement accuracy		0.25°(1σ)
Accelerometer	Accelerometer range	±4g
	Acceleration resolution	0.001g
	Acceleration accuracy	5mg
	Bias instability (allan)	0.05mg
	Speed random walk coefficient (allan)	0.015m/s/sqrt(h)
	Bias stability (10s average)	0.15mg
Gyro	Max Gyro Range	±250°/s
	Bias instability (allan)	5.0°/h
	Angle random walk coefficient (allan)	0.30°/sqrt(h)
	Bias stability(10s average value)	10°/h
Startup time		AGV application: 5 ~ 6s
		AGM application: 1.5s
Input voltage		9~36VDC / 5VDC(optional )
Working current		30mA(12V)
Working temp		-40℃ ~ +80℃
Storage temp		-40℃ ~ +85℃
Vibration		5g~10g
Impact		200g pk,2ms,½sine
Working life		10 years
Output rate		1Hz~100Hz can set
Output signal		CAN2.0A / CAN2.0B(optional )
MTBF		≥98000Hours/times
Insulation resistance		≥100 MΩ
Shockproof		100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration		10grms,10～1000Hz
Protection grade		IP67
Weight		≤135g (including 1 meter standard cable)
