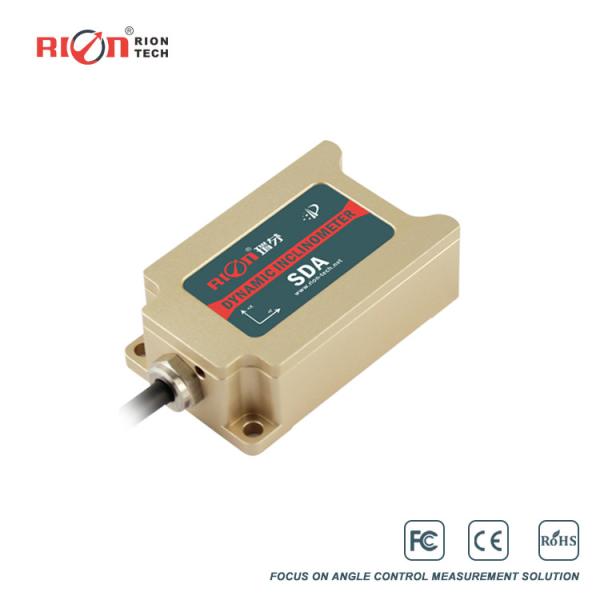

Anti Vibration 100Hz Dynamic Inclinometer Dual Axis CANopen

SDA116T/SDA126T is RION's CANopen output dynamic and static dual-mode tilt sensor for industrial field control, integrating dynamic and static dual-mode combination algorithm. According to different working conditions, the product automatically switches between dynamic and static measurement modes. High-precision measurement of products is guaranteed in a variety of work environments. When the working environment is in static mode, the inclinometer will adopt a static algorithm inside. When the working environment is in dynamic mode, the dynamic algorithm will be adopted inside the inclinometer to maintain the static high precision and ensure the dynamic high-precision measurement of the object. The industry standard isolated CAN transceiver with built-in high-precision A/D differential converter, through the 5th-order filtering algorithm, can measure the tilt and pitch angle of the sensor output relative to the horizontal plane.
the temperature drift of the sensor can be corrected according to the change of the built-in temperature sensor to ensure high repeatability of the product under low temperature and high temperature environment. The output response frequency standard can reach 100Hz. If you need a higher response frequency, we can customize it according to the user. The products are truly industrial grade products with reliable and stable performance, good expandability and a variety of outputs to choose from. Suitable for a variety of harsh industrial control environments.

Feature

●dynamic-static inclinometer

●range: ±1~±90°

●output: CANopen
●DC 9~36V power supply

●working temp. -40~+85℃

●resolution 0.01°
●IP67

●anti-vibration >2000g

●direct lead wire
●size:72.62×42×23.1mm

Horizontal installation: be parallel between two surfaces:

Note: horizontal installation is factory default, if need vertical installation, please confirm
with sales.
