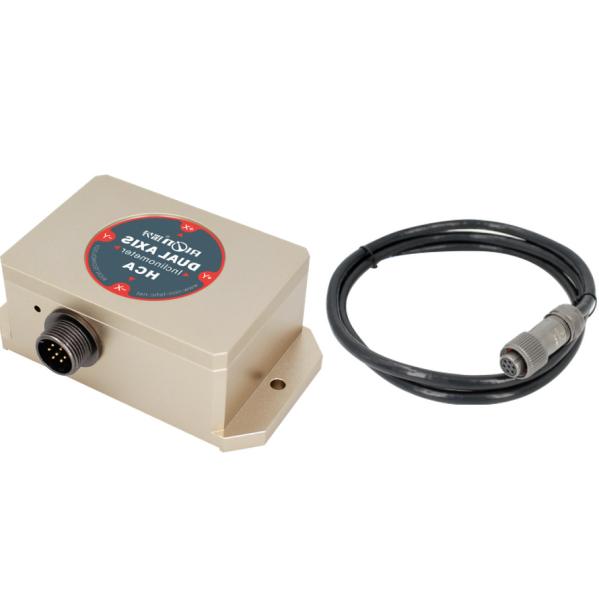

High Vibration Resistance Clinometer Sensor Geological Tilt Monitoring

Brand Name : RION

Model Number : HCA510-30-N

Certification : CE, ISO

Place of Origin : China

MOQ : 1

Price : 335 USD/pcs

Payment Terms : T/T, PayPal

Supply Ability : 500 pcs/month

Delivery Time : 7 word days

Packaging Details : carton

Measure range : ±5~60°

Measure axis : X,Y

Resolution : 0.001°

Measure accuracy : 0.005°

Long term stability : 0.01°

Zero Temp.coefficient : ±0.002°/℃

size : L90 × W59 × H34mm

Power on time : 0.5s

Contact Now

High Vibration Resistance Clinometer Sensor Geological Tilt Monitoring

HCA518T/HCA528T-N is a high accuracy single /dual axis inclinometer, output adopt the standard industry electronic interface 4 ~ 20mA, can be long-distance transmission of up to 2000 meters. The product uses the latest MEMS high technology for production, made precise compensation and correction to temperature error and nonlinearity error, small measuring range and the highest accurate up to 0.003 ° (bigger measuring range index, please refer to product technical data),

HCA518T&HCA528T inclinometer use the dynamic zero test compensation technology to ensure product Quick Launch, high resolution ,stable data, good capacity to bear shock & vibration, built-in anti-RF, adopts anti-electromagnetic interference circuit to ensure that the output signal to a higher anti-interference ,in addition to this product is better than the similar market product on software technical data, on the reliability and stability the product is also using the high-end application-level MCU,three-proofing PCB board, imported cable, wide temperature shielded metal enclosure and other measures to improve product industrial level,to ensure the product can be long-term & safety extraordinary operation in harsh environments.

TECHNICAL DATA

HCA518T/HCA528T-N CONDITION PARAMETERS UNIT
Measure range ±10 ±30 ±60 ±90 °
Measure axis X/XY X/XY X/XY X/XY axis
Zero output 0° output 12 12 12 12 mA
Resolution 0.001 0.001 0.001 0.001 °
Measure accuracy MAXE Room temp. 0.005 0.01 0.02 0.03 °
RMSE Room temp. 0.003 0.003 0.005 0.008 °
Zero Temp. coefficient -40~85℃ 0.0005 0.0005 0.0005 0.0005 °/℃
Sensitivity temp. coefficient -40~85℃ ≤100 ≤100 ≤100 ≤100 ppm/℃
Power on time 0.5 0.5 0.5 0.5 S
Sensitivity temp. coefficient 20Hz
EMC According to EN61000 and GBT17626
MTBF ≥50000 hours/times
Insulation Resistance ≥100MΩ
Shockproof 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection glass IP67
Cables Standard configuration: 2m length, wear-resistant, wide temperature, shielded cable 7P * 6.8mm aviation connector, cable weight ≤110g
Weight ≤250g(Excluding cable)

MEASURING DIRECTIONS

The installation must guarantee the product bottom is parallel to measured face,and reduce the influence of dynamic and acceleration to the sensor. This product can be installed horizontally or mounted vertically , for installation please refer to the following scheme.
