50Hz 24V High Precision Gyroscope Sensor RION Single Axis Yaw Angle Sensor

angle speed sensor single axis angle rate sensor price low drift angular sensor for AGV

Reborn , Core upgrade

*Small drift,

*stable performance

* anti-interference

* anti vibration

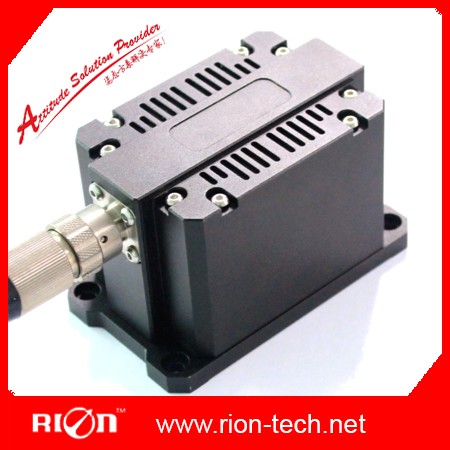

TL740D is RION-TECH company newly developed horizontal azimuth angular gyro sensor based on latest MEMS inertial measurement platform , by means of the dynamic attitude algorithm for the angular velocity of gyroscope ,it can simultaneously output carrier's azimuth angle .The product inernal integrated RION's Patent Inertial navigation algorithm, through the model of attitude angle data fusion , can solve the gyro short time drift problem as much as possible .

This product is specially used for robot car, AGV vehicle azimuth orientation, attitude control and other related applications instead of the traditional robot vehicle magnetic bar guide shortcomings, no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic tracing and driving.

Key Features

• Azimuth angle output

• Strong vibration resistance

• Light weight

• Long life,strong stability

• Cost-effective

• All solid state

• Compact & light design

• RS232/RS485 output optional

• DC9~36V power supply

Application

• AGV truck

• Car Navigation

• 3D virtual reality

• Platform stability

• Auto safety system

• Turck-mounted satellite antenna equipment

• Industrial control

• Robot

2. The installation of the instrument should be kept parallel to the surface of the measured object, and reduce the influence of the dynamic and acceleration on the angle meter. Incorrect installation will lead to measurement errors, with particular attention to "surface" and" line "

1)The mounting surface of the instrument fixing must be close, smooth and stable with the measured surface. If the mounting surface is not smooth, the angle error of angle measurement can be caused easily. See figure Pic.AB

2)The axis of the instrument must be parallel to the axis of measurement, and the two axis should not be included angle as far as possible , see figure Pic.CD

3. Do not shake violently during the use of the product, avoid violent vibration, away from the vibration source (if you can not avoid please install the shock absorber), so as not to affect the product measurement accuracy;

4. Try to avoid a sharp acceleration, arrest, sharp turn angular velocity greater than 300 DEG /s movement during use, so as not to affect the measurement precision of products.

5. After the switch is started, the angular gyro sensor needs to be static 20S, and the initial value of the measuring unit is restored, so as to ensure the measurement precision of the product. If there is no such operation, the product can also be used normally, but can not reach the normal precision standard .
