PCA826 IP67 Wind Turbine Tilt Vibration Displacement Sensor

  • 1
  • 2
  • 3

Brand Name : RION

Model Number : PCA826-422

Certification : CE, ISO

Place of Origin : Guangdong, China

MOQ : 1

Price : $703.00/Pieces 1-9 Pieces

Payment Terms : T/T, Paypal

Supply Ability : 500/month

Delivery Time : 7 days for samples

Packaging Details : 1pcs/box ,100pcs/ctn

Type : Angle acceleration sensor

Theory : other

output : RS485, RS422

Axis : dual

resolution : 0.0005 degree

working temp. : -40 to +85℃

waterproof : IP67

Size : L82×W70×H42mm

Absolute accuracy : ±0.001deg

Response frequency : 0.04s

Contact Now

PCA826 IP67 Wind Turbine Tilt Vibration Displacement Sensor​

▶ MAIN FEATURES

★ Biaxial tilt angle measurement

★ Range ±1~±60° optional

★ Horizontal/vertical optional

★ DC 9~36V wide voltage input

★ Wide temperature operation -40~+85℃

★ Resolution 0.0005°

★ IP67 protection grade

★ Size: L82×W70×H42mm

★ Output mode RS485, RS422 optional

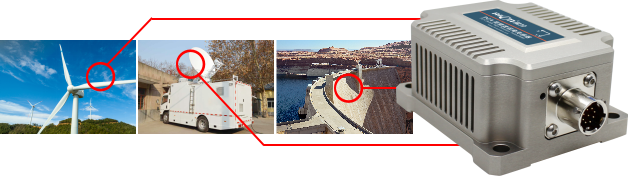

APPLICATION

★ Wind power monitoring

★ Bridge and Dam monitoring

★ Ancient building monitoring

★ High-speed rail track monitoring

★ Ground satellite communication vehicles

★ Railway gauge ruler and gauge leveling

★ Satellite communication vehicle

★ Geological equipment tilt monitoring

★ Engineering vehicle leveling

Specification
PCA826T  CONDITION PARAMETERS UNIT
Measure range ±5 ±10 ±30 ±60 °
Measure axis XY XY XY XY
Resolution 0.0005 0.0005 0.0005 0.0005 °
Measure accuracy @25℃ 0.001 0.002 0.003 0.005 °
Long-term stability 0.02 0.02 0.03 0.04 °
Zero temp coefficient -40~85℃ 0.0002 0.0002 0.0002 0.0002 °/℃
Sensitivity temp coefficient -40~85℃ ≤50 ≤50 ≤50 ≤50 ppm/℃
Power on time <0.4 <0.4 <0.4 <0.4 S
Response frequency 0.04 0.04 0.04 0.04 S
Output rate 5Hz,10Hz,25Hz,35Hz,50Hz,100Hz. Can be set
Ouput signal RS485/RS422 optional
EMC According to EN61000 and GBT17626
MTBF ≥50000 hour/time
Insulation Resistance ≥100 MΩ
Shockproof 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10~1000Hz
Protection grade IP67
Cables Standard configuration 1 meter, wear-resistant, wide temperature, shielded cable, mm aviation connector
Weight 385g (exclude cable)
PCA826 IP67 Wind Turbine Tilt Vibration Displacement Sensor
PCA826 IP67 Wind Turbine Tilt Vibration Displacement Sensor
PCA826 IP67 Wind Turbine Tilt Vibration Displacement Sensor
