DMI610 inclinometer digital dual axis, protractor spirit level full color screen. 2 axis digital readout
▶ GENERAL DESCRIPTION
DMI610 is a digital display inclinometer for various industry angle controling and measuring.
The core of this product use micro mechanical control principle, using RION patent interleaved temperature compensation model algorithm, play micro electronic mechanical principle of absolute operation advantage, to ensure the long-term stability and repeatability of measuring instrument. DMI610 single axis maximum range of up to + 90 ° , resolution 0.002 ° , the best accuracy <0.02° (in full measuring range), fast response speed, stable data , specially designed side and bottom the strong magnetic adsorption type installation, three datum can be measured using normally, bring great convenience to customers, DMI610 has the function of data storage, 3 measurement modes (radian, angle, mm/m) optional, strong expansibility, convenient application, industrial reliability, and has the absolute competitive price advantage in the international market have absolute competitive advantage!
▶ FEATURES
★ Best accuracy:<0.02° ★ Repeatability:0.02°
★ Maximum measure range:±90° ★ Data store function
★ Absolute/Relative measurement can switch ★ Both sides and bottom can measure
★ Three surface datum strong magnetic installation ★ Working Temperature : -10°～ +70℃
★ Auto-angle interleaved compensation function ★ Auto temperature drift compensation
★ User can calibrate ZERO by himself ★ Night vision fours colors screen
★ Three kinds of measurement mode selectable (radian, angle, mm/m) ★ Angle resolution:0.001°
▶ APPLICATION
★ Building construction ★ Automobile four-wheel testing ★ Road slope
★ Machinery installation ★ Piping installation ★ Industrial platform
★ Turntable testing ★ Pan unit angle detection ★ Production jig
★ Medical instruments
▶ TECHNICAL DATA
 DMI610 | PARAMETERS |
| Angle measure range | ±90° | ±30° |
| Measure axis | Single axis | Dual axis |
| Best accuracy | <0.02°(RMS)(Full range) | <0.005°(RMS)(Full range) |
| Angle measure resolution | 0.001° | 0.001° |
| Repeatability | 0.004° | 0.004° |
| Measurement mode | radian, angle, mm/m three modes can be set |
| LCD | 64 true colors night vision display screen |
| LCD visible area size | L60.5*W45mm |
| Working temperature | -10℃~+70℃ |
| Working humidity | 85%RH |
| Power supply | 1.5V |
| Ideal working time | 6Hours |
| Shock resistance | 10g@11ms,3 Axial Direction (Half Sinusoid) |
| Shock impact | 10grms,10～100Hz |
| Weight | 600g |
| Waterproof grade | IP65 |
| Material | Anodic oxidation of aluminum alloy |
| Size | L115*W95*H32mm |

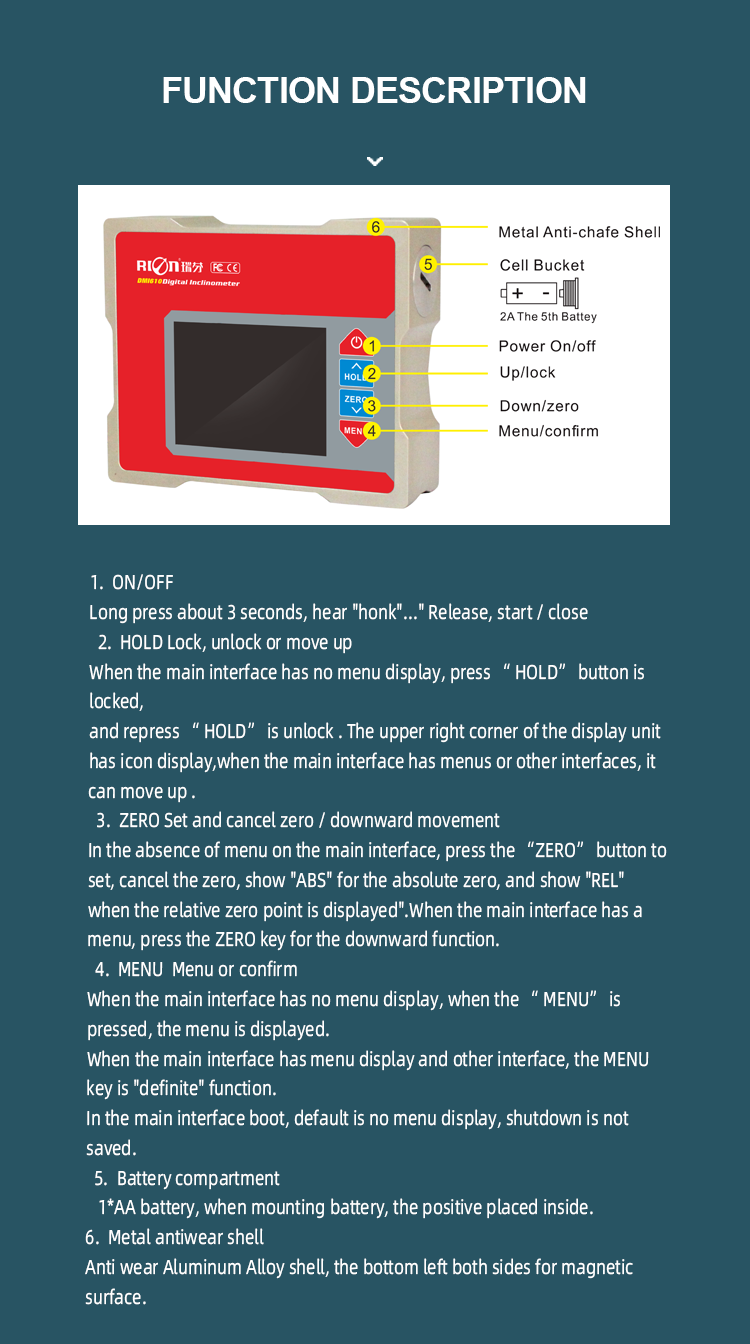

Product Overviews
FAQ
How long is the delivery time of the products?
A: Usually we have stock for every type of products, if the product that you selected we have in stock, then we only need to re-test it before leaving the factory, so the delivery time is around 2~4 days; if we don’t have them in stock, then we need to arrange the production, the delivery time will be around 2 weeks. For the customer-oriented design products, our engineers will give the approximate delivery time according to the technical requirements.
Q: How about the payment conditions?
A: we accept 40% prepayment in advance, and the balance 60% payment before the delivery. For the customer-oriented design product, the payment will be discussed together.
Q: How will we do if the product has the quality problem?
A: Our products have passed very strict tests before delivery, so it is very low probability to have quality problem. If our products have quality problem (not caused by man-made factors) in the warranty period, our factory will arrange the free repair. If the product can’t repair well, we will arrange to provide a new one. If the product is out of warranty time, we will provide the repair only charging the material cost.
